| Product Name | Sweeping Mechanism Assembly |
| Specifications | approx. 46 kg |
| Compatible Models | Sweeper Truck |
| Material Composition | Steel |
| Function | A road sweeper comes fitted with a red-colored sweeping mechanism arm. This arm accommodates the installation of sweeping discs and brushes, and cleans stones and debris off road surfaces via its telescopic and rotational motions. |
| End Users | Sanitation vehicle manufacturers |
| Strong points | High cost performance Quick after-sales response Stable quality Provide supporting products and one-stop purchasing Provide technical guidance |
Functional Description of Zoomlion 5160/5163TXSE Sweeping Mechanism Assembly (Sweeping Disc Connecting Rod + Upper Beam Support Arm + Main Arm Assembly)
This assembly is a core structural component of the sweeping system for Zoomlion 5160/5163TXSE series sweeper-scrubber trucks, integrating three key components: sweeping disc connecting rod, upper beam support arm and main arm assembly. Its functions focus on "stable transmission, precise sweeping and structural durability", as detailed below:
1.Stable Power Transmission & Anti-Collision Protection: The sweeping disc connecting rod can efficiently transmit the vehicle's hydraulic/auxiliary engine power to the left and right sweeping discs, driving the sweeping discs to rotate at high speed to clean road dust and granular garbage. At the same time, it is adapted to the vehicle's anti-collision avoidance mechanism—when the sweeping discs touch obstacles such as guardrails and curbstones, the connecting rod can adjust the angle slightly to avoid deformation of the sweeping discs, ensuring continuous sweeping.
2.Precise Control of Sweeping Range: By fixing the relative position of the sweeping disc connecting rod and the main arm assembly, the upper beam support arm maintains the standard "central dual-disc sweeping" layout of the sweeping discs. This ensures the sweeping range of the sweeping discs coordinates with the vehicle's central suction nozzle, achieving a single-side sweeping width of no less than 2.9m and a double-side sweeping width of no less than 3.5m. It can also cooperate with the sweeping disc structure to clean the vertical and top surfaces of curbstones, covering the cleaning needs of roads and curbs.
3.Operational Stability Support: The main arm assembly bears the load of the overall structure, supporting the weight of the sweeping discs, connecting rods and upper beam support arms, and avoiding structural shaking caused by road bumps or high-speed rotation of the sweeping discs. At the same time, it maintains a fixed height of the sweeping discs from the ground, ensuring consistent fit between the sweeping discs and the road surface—this not only improves the one-time road cleaning rate (over 90%), but also reduces the scratch and wear of the sweeping discs, extending the service life of the components.
About Us
Changsha Jieermei Sanitation Machinery Equipment Co., Ltd. (JEM) is a professional manufacturer dedicated to upper-mounted parts for sanitation vehicles, covering municipal sanitation cleaners, road sweepers, and related equipment.
Our Strengths
Core Products:Suction nozzle assemblies, cleaning mechanism assemblies, centrifugal fans.
R&D & Customization:Equipped with R&D and technical capabilities to develop/customize functional parts based on the specific characteristics of your sanitation vehicle chassis.
Modular Kits Supply:Provide pre-assembled and debugged modular kits (including nozzles, cleaning mechanisms, and all required components).
Key advantage: High adaptability, reducing OEMs’ assembly time and enabling focus on cost optimization & after-sales service.
Order Flexibility:Support small-batch, high-variety, and fully customized orders.
Product Tags:
|
|

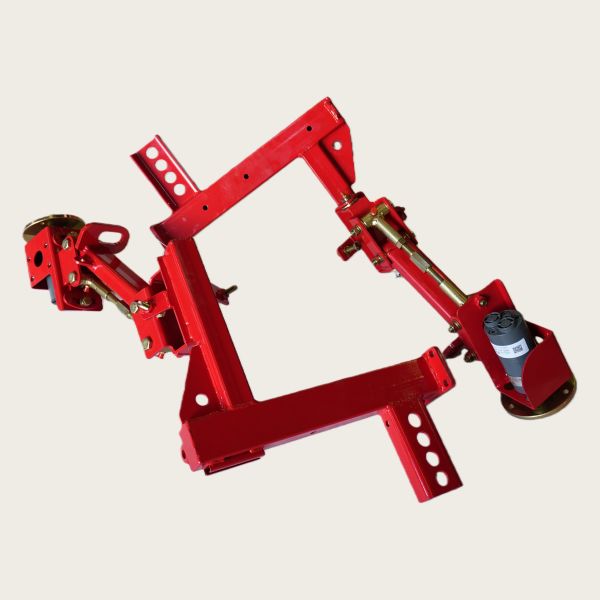

Sweeping Mechanism Assembly (Sweeping Disc Connecting Rod + Support Arm): High-Strength Support Frame + Collision Protection + Adjustable Sweeping Images
|
