| Product Name | Sanitation Vehicle Cut-off Valve |
| Specifications | approx. 1.4 kg |
| Compatible Models | Water Sprinkler Truck , Sweeper Truck |
| Material Composition | stainless steel/aluminum alloy |
| Function | Pneumatic ball valve drain valve for sprinkler trucks (pneumatic on-off valve), which is switched by air circuit and can withstand a pressure of 1.5MPa. |
| End Users | Sanitation vehicle manufacturers |
| Strong points | High cost performance Quick after-sales response Stable quality Provide supporting products and one-stop purchasing Provide technical guidance |

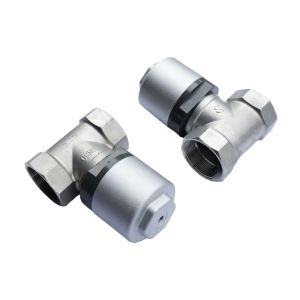

Functional Description of Zoomlion Hubei Chengl Li 5160TXS Pneumatic Shut-Off Valve (EQ22-50, for Dongfeng Tianjin Sanitation Vehicles)
This pneumatic shut-off valve is a core control component specifically designed for Dongfeng Tianjin sanitation vehicles (sweeper-scrubber trucks, sprinkler trucks, etc.), focusing on three core requirements: "precise fluid control, durable adaptation, and safety & reliability". Its specific functions are as follows:
1.Intelligent On-Off & Pressure Regulation: Driven by pneumatics, it can quickly turn the water circuit on/off with a response time of ≤0.5 seconds. It has a built-in pressure balance structure, adapting to a working pressure range of 0.2-1.0MPa, which can automatically cope with water pressure fluctuations and prevent pipeline damage. It also supports manual emergency operation—when the pneumatic system fails, the valve can be manually opened/closed via an eccentric shaft to ensure basic operations.
2.Durable Adaptation for Sanitation Scenarios: The valve body is made of stainless steel (304/316L) with an anti-corrosion coating on the surface, improving resistance to sewage and acid-base corrosion by more than 5 times, with a service life of up to 8000 hours. The valve seat adopts a hard-seal structure (hard alloy overlay welding), which can withstand the erosion of sediment-containing water flow, with a leakage rate of ≤0.01% of the rated flow. It supports two modes: high-pressure cleaning (full opening with a flow rate of 80m³/h, suitable for road flushing) and spray dust suppression (atomization particle size ≤50μm, suitable for dust control), meeting cleaning needs in multiple scenarios.
3.Safety Protection & Low Maintenance: Equipped with a limit switch, it provides real-time feedback on the valve's on-off status to prevent misoperation. It uses a double-acting spring-return pneumatic actuator—when the air supply is interrupted, the valve closes automatically to avoid water loss or pipeline burst. It has a built-in self-cleaning function, which purges the valve cavity through reverse air flow to reduce impurity deposition. The modular design allows quick separation of the valve body and actuator; maintenance does not require pipeline disassembly, shortening maintenance time by 60%.
About Us
Changsha Jieermei Sanitation Machinery Equipment Co., Ltd. (JEM) is a professional manufacturer dedicated to upper-mounted parts for sanitation vehicles, covering municipal sanitation cleaners, road sweepers, and related equipment.
Our Strengths
Core Products:Suction nozzle assemblies, cleaning mechanism assemblies, centrifugal fans.
R&D & Customization:Equipped with R&D and technical capabilities to develop/customize functional parts based on the specific characteristics of your sanitation vehicle chassis.
Modular Kits Supply:Provide pre-assembled and debugged modular kits (including nozzles, cleaning mechanisms, and all required components).
Key advantage: High adaptability, reducing OEMs’ assembly time and enabling focus on cost optimization & after-sales service.
Order Flexibility:Support small-batch, high-variety, and fully customized orders.
